Create Use Cases

In the previous sections we initiated a new project as a placeholder for our application ToDoApplication using Averos Designer.
Then we created and configured our business entities along with their managing service.

In this section we are going to create the use cases which we identified in the application design & specifications section.

Remember earlier in the design phase we have identified a couple of use cases according to our business requirements.
These use cases have been grouped into two main categories (remember we draw two use case diagram earlier) depending on the entities they are related to as follows:

• Use cases related to ToDoArea
• Use cases related to ToDoTask

Let’s start creating the use cases related to the entity ToDoArea.

I. ToDoArea Use Cases

Remember, in the design phase, we have identified the following actions a user can execute while interacting with ToDoArea entity:

1. a user can View/delete/add/update a ToDoArea instance
2. a user can Assign/Unassign a ToDoTask to a ToDoArea
3. a user can Search for ToDoArea instances
4. All these actions are performed while the user is signed into the application (user is in the private context).
5. some actions includes a search for ToDoArea (View, add and update a ToDoArea are possible after executing a search action)

Now let’s get few steps back and recall what are the use cases available to us that averos framework provides out of the box, shall we ?

Averos Framework provides three types of generic use cases, namely SEARCH, CREATE, and CRUD use cases.

CREATE type is a generic use case that provides entity creation capabilities along with customizable field validations and advanced field relationships logics and domain controllers.
It creates one default menu link in the application’s user private space menu.

SEARCH type, on the other hand, is a generic use case that mainly provides entity search capabilities using criteria based on the entity members values.
It provides built-in components for entity view, entity deletion, entity edition as well as entity creation all in the same component.
It creates one default menu link in the application’s user private space menu.

As for CRUD type it is considered as the combination of the types CREATE and SEARCH.
It creates two default menu links in the application’s user private space menu (one for create and one other for search use cases).

🔖 Further informations about Averos Generic Use Cases could be found in the Averos official documentation.

So, now the question is: can we leverage Averos Use cases and create the ones we identified for our ToDoApplication ?

Well, of course we can!

Here is how!

Lets browse the use cases one by one and see what Averos Use Case is most suitable for it.

1. a user can View/delete/add/update a ToDoArea instance

☑️ An Averos Use Case of type SEARCH could provide all the capabilities described in this use case in the same page; whereas another one of type CREATE should provide the entity creation capability in a dedicated page.

🙋‍♂️We could have used only one use case of SEARCH type for all the requirements above, but we wanted you to try the type CREATE as well.

2. a user can Assign/Unassign a ToDoTask to a ToDoArea

This use case could be seen as an update in the relationship between a ToDoArea object and a ToDoTask object.
However, since we already know that this relationship is part of ToDoArea attributes (remember the design phase?), this use case turns out to be a simple update on a ToDoArea object.

☑️ The same Averos Use Case of type SEARCH which we assigned to the first requirement, already meets the requirements of this one.

3. a user can Search for ToDoArea instances

☑️ The Averos Use Case of type SEARCH exactly meets any Search requirements so again we will use this type for this use case too.

4. All these actions are performed while the user is signed into the application (user is in the private context).

☑️ This requirement is already met since averos framework provides multi-users capabilities which implies a private space for each user.

5. some actions include a search for ToDoArea (View, add and update a ToDoArea are possible after executing a search action).

☑️ This means that actions performed on a single entity such as view, edit and delete, could be preceded by a search action.

☑️ The Averos Use Case of type SEARCH meets exactly any Search requirements, so again, we will use this type for this use case too.

🙋‍♂️ So all in all, we need to create only two averos use cases of type SEARCH and CREATE in order to meets ToDoArea entity requirements.

Ok then, let’s get back to Averos Designer and start creating these two use cases.

First we are going to create a new use case of type SEARCH for ToDoArea entity.

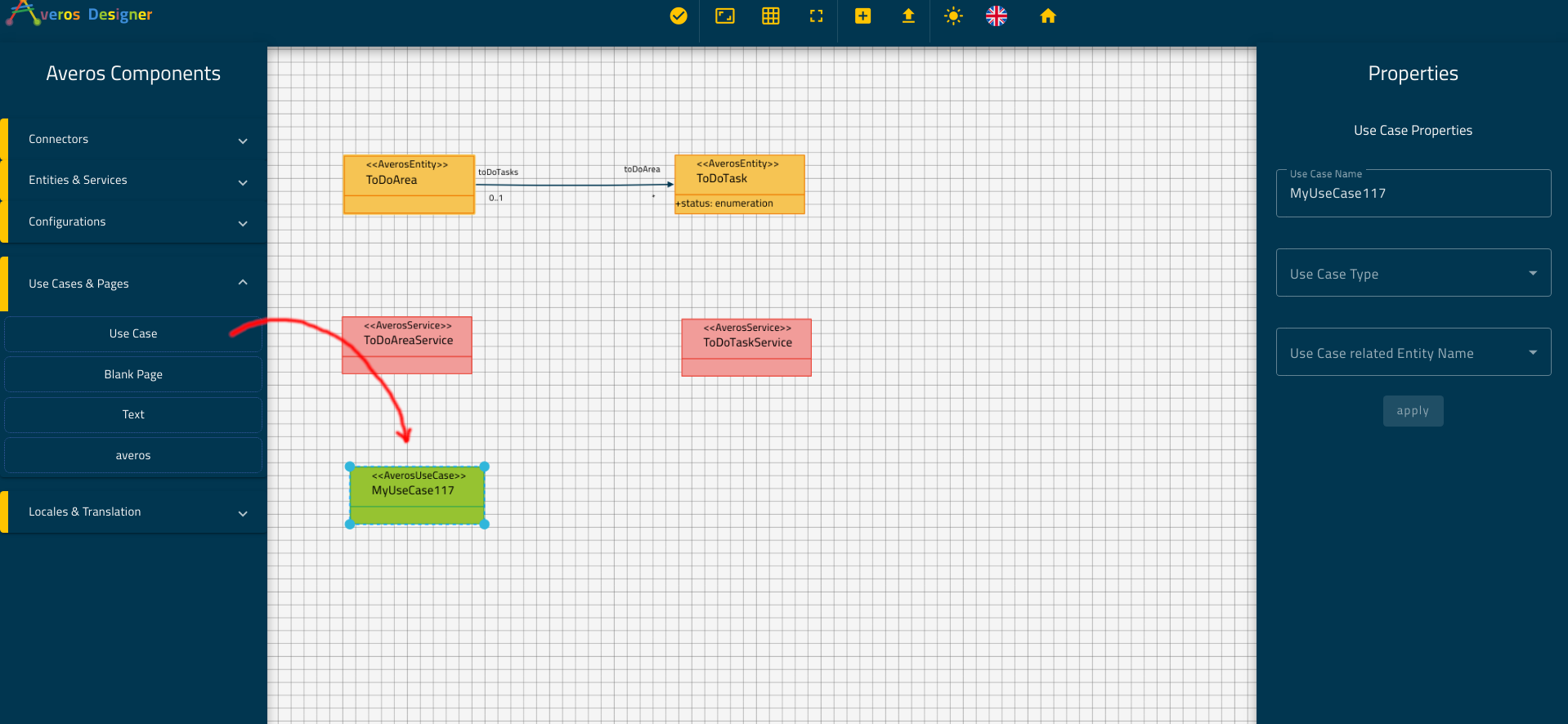

From Averos Components panel, expand Use Cases & Pages list and drag and drop a Use Case component into the canvas.

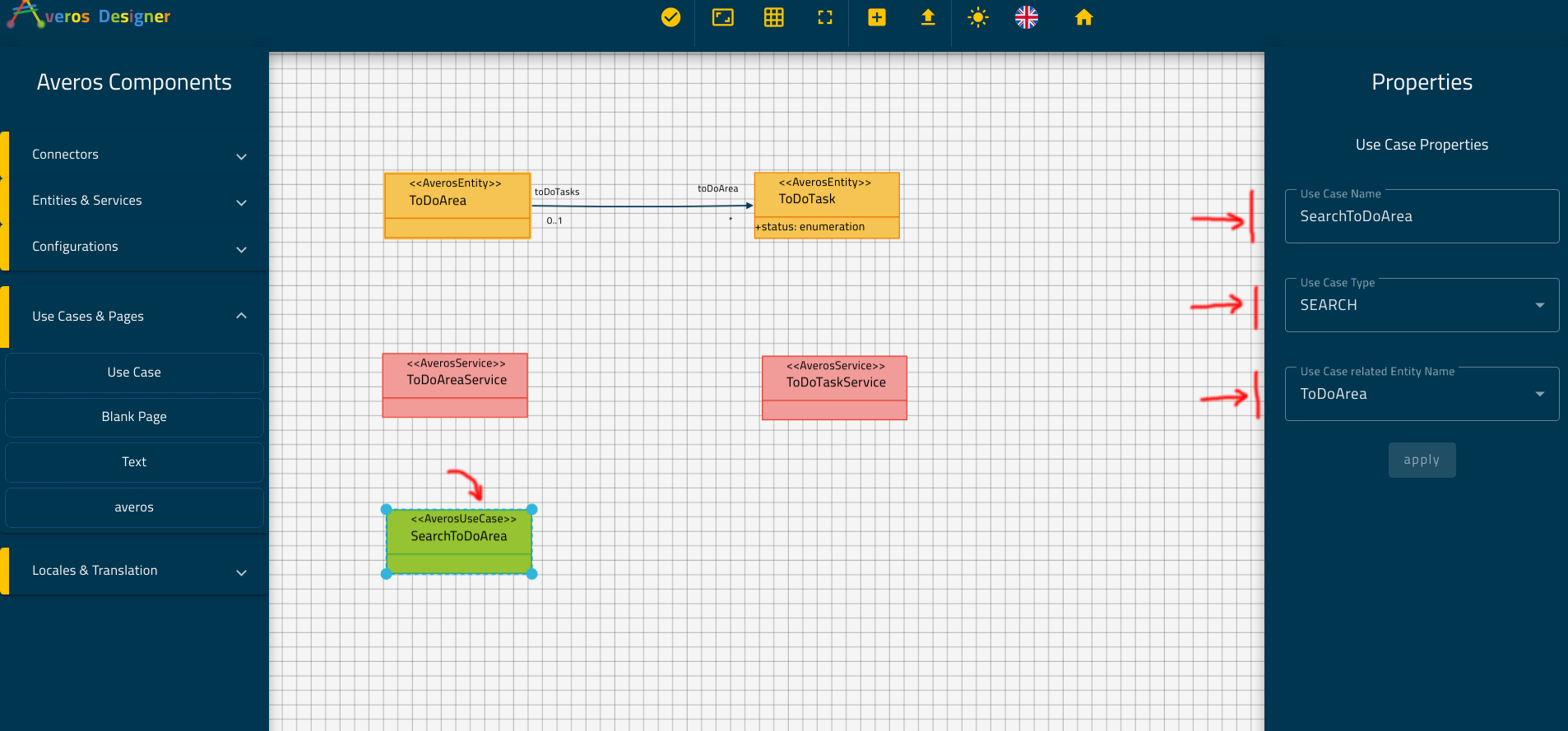

Select this new use case and update its properties as follows:

• Use Case Name: SearchToDoArea
• Use Case Type: Choose SEARCH
• Use Case Related Entity Name: Choose ToDoArea

Click on apply.

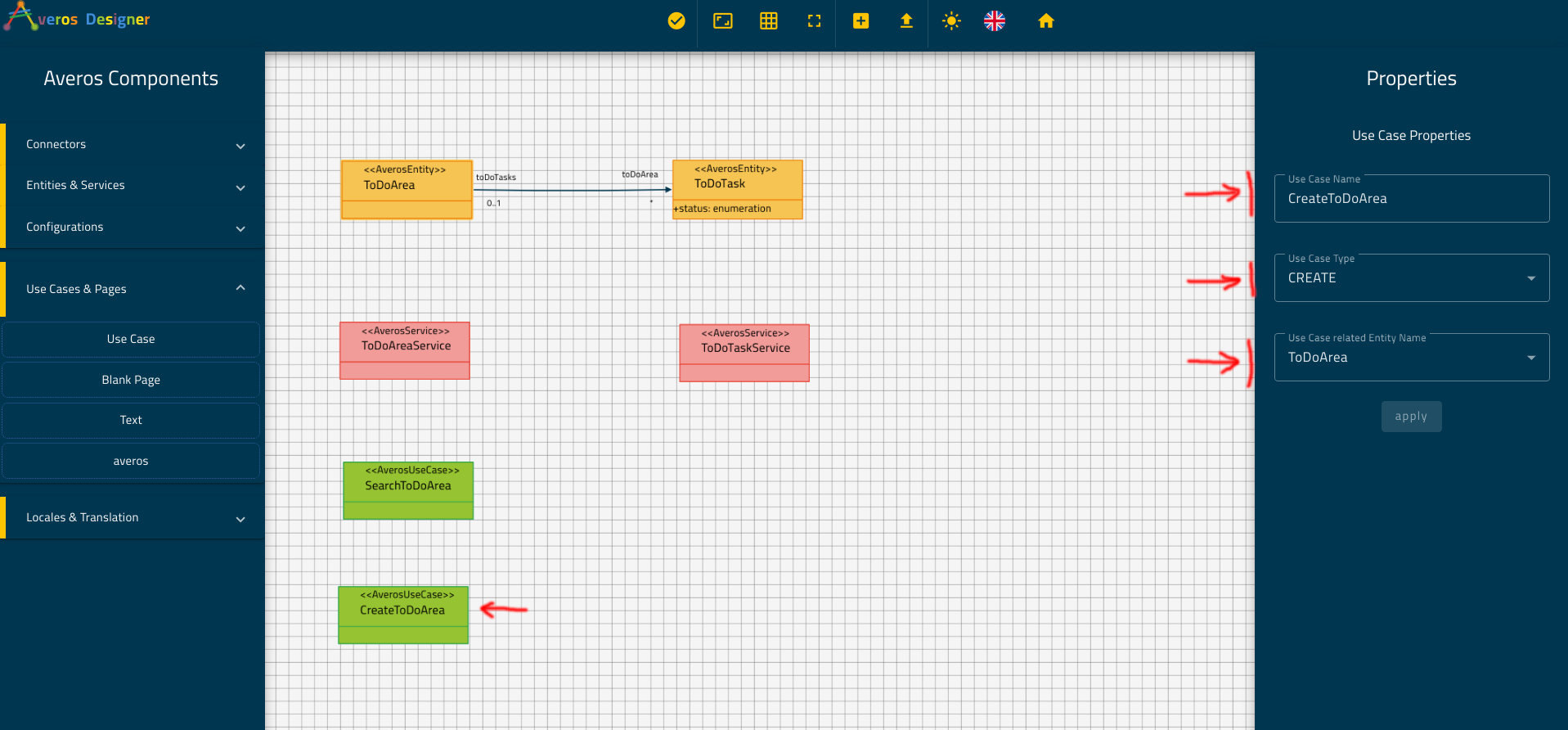

Now, let’s create another use case of type CREATE for ToDoArea entity.

From Averos Components panel, expand Use Cases & Pages list and drag and drop a new Use Case component into the canvas, then update its properties as follows:

• Use Case Name: CreateToDoArea
• Use Case Type: Choose CREATE
• Use Case Related Entity Name: Choose ToDoArea

Click on apply.

That’s it !
We have implemented all the use cases related to the entity ToDoArea. 🚀

Let’s create the use cases related to ToDoTask entity.

II. ToDoTask Use Cases

As we did with ToDoArea, following the same logic we could find that both SEARCH and CREATE use cases could meet all ToDoTask entity requirements.

However, for the sake of diversity, we are going to use the type CRUD which is regarded as the combination of the two previous use cases.

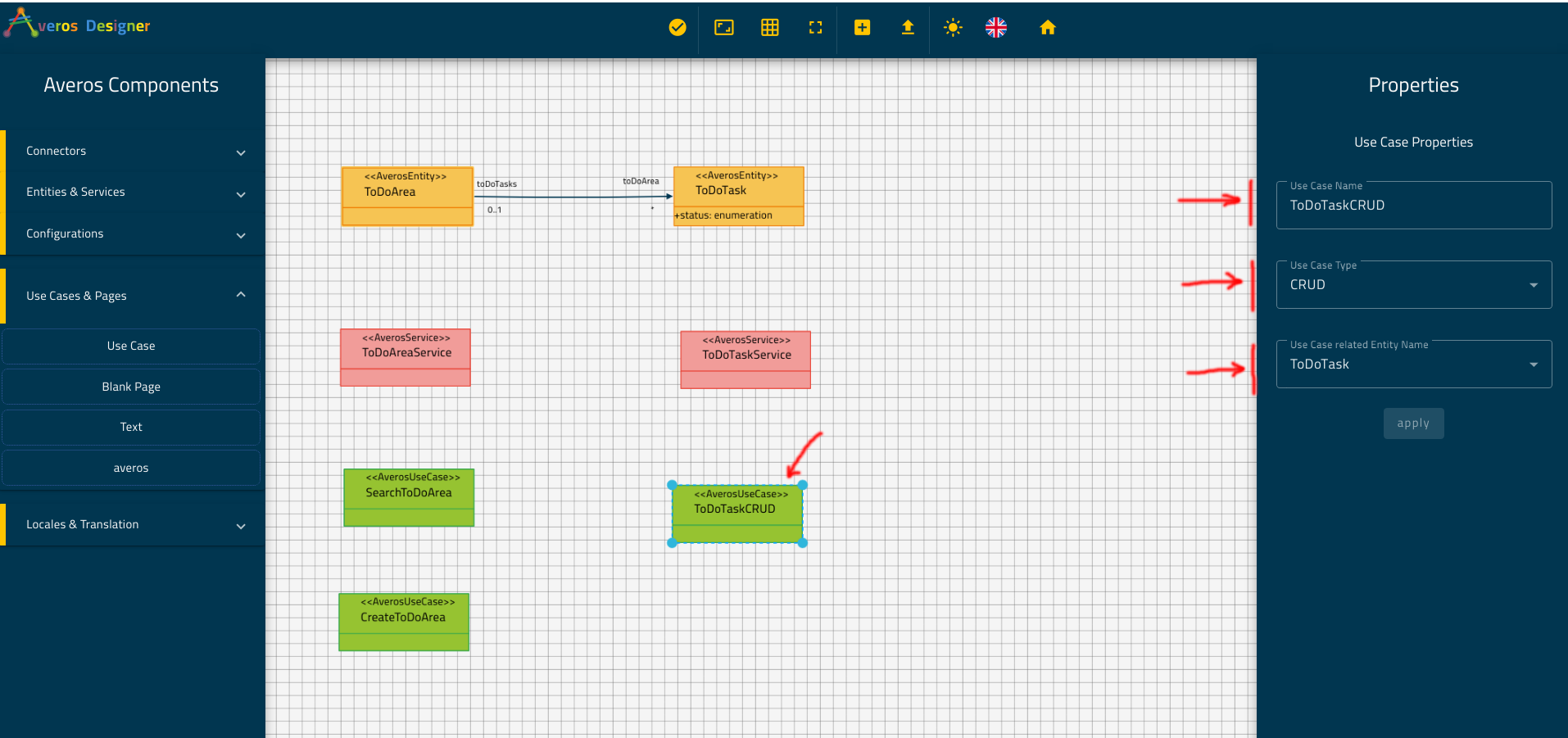

Go ahead and add a new Use Case component to the canvas, then update its properties as follows:

• Use Case Name: ToDoTaskCRUD
• Use Case Type: Choose CRUD
• Use Case Related Entity Name: Choose ToDoTask

Click on apply.

All is good! 🚀

All our use cases defined in the specification phase were created.

Next, we will create a blank page (empty page) and configure its menu link as expected by our additional requirements.

See you in the next section!
